The Birdlady Part 1 (the Birds)

With my conceptual photography I will often spend several days building a set and sorting out lighting before the model arrives. However the majority of this time is not spent actually shooting.

The creation of my Birdlady image was completely different in that it involved seven days of actual shooting and many hundreds of images.

I am not sure where the concept came from but I definitely wanted to create an image of someone representing Mother Nature surrounded by birds. I also wanted to incorporate some metal rings that had originally come from a wine barrel.

The first task was to photograph the birds which to me was somewhat of an unusual challenge. I have shot them on many previous occasions but I cannot say that I’m overly good at it.

I knew that would have to clearcut the birds out of their background so I tried to make it as simple as possible. In our backyard I set up a frame in front of our old garage that has plain walls. From the crossbar I placed a feeder and then suspended the ring below it. I figured that birds would land on the ring before going up to the feeder.

My Lumix G9 can shoot timelapse so I thought I would use this feature to get my shots. I positioned the camera on a tripod located inside of our double garage. The G9 is a micro 4/3 camera which meant that they reach of the lens was double its setting. was working on the theory that with the camera in the garage the birds would not be disturbed.

Day 1 Lumix G9 f9 1/250s ISO400 135mm (270mm equivalent )

That theory proved to be true but the overall experiment was a disaster. During the time that the timelapse was running, the camera shot around 1,200 photos but when I reviewed them I discovered that only three had birds actually in them.

On day two I tried again but this time I set behind the camera and photographed. This guy gave me a much better hit rate but I was still not seeing large numbers of birds I came to the conclusion that the strings were perhaps putting them off.

Day 2 Lumix G9 f9 1/2500s ISO400 100mm (200mm equivalent )

On day three I tried something different and I moved the birdfeeder to the end of the garage and I also changed cameras to my full frame Nikon D600. This time I had much greater numbers of birds coming but now I realised that these images were going to be much harder to work with. I figured that shooting in front of the plain wall was ideal but that I needed to improve where the feeder was located. I also realised that having the ring positioned higher up was going to cause a problem in matching the perspectives when it came to create the composite.

Day 3 Nikon D600 f5.6 1/800s ISO100 200mm

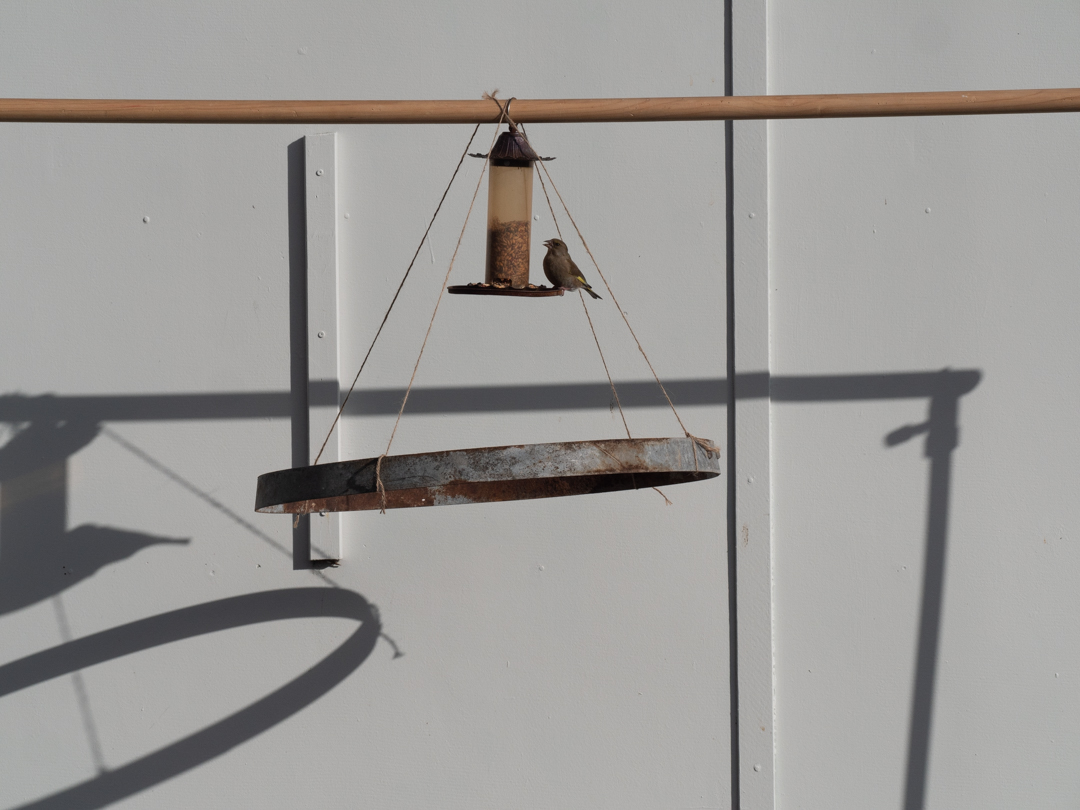

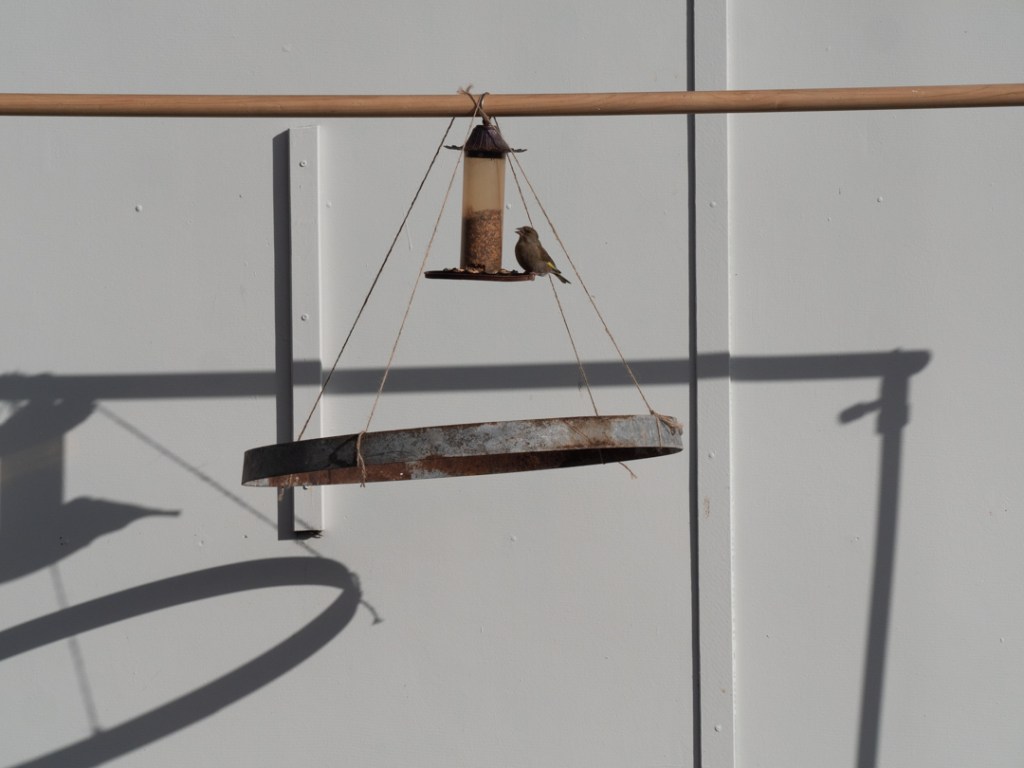

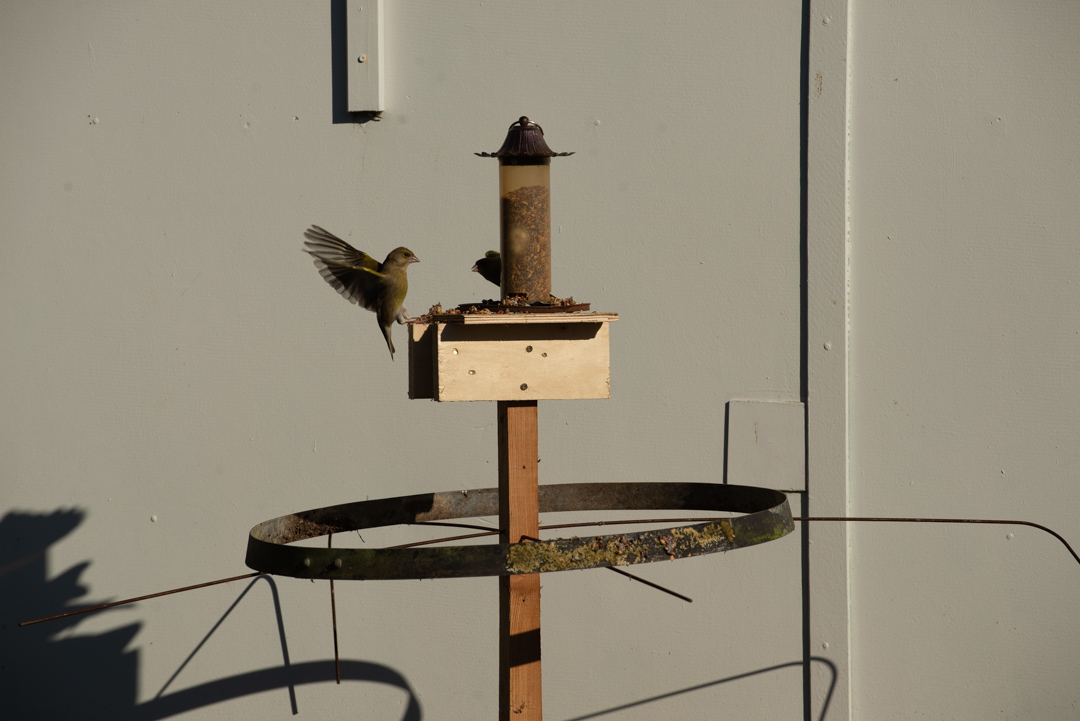

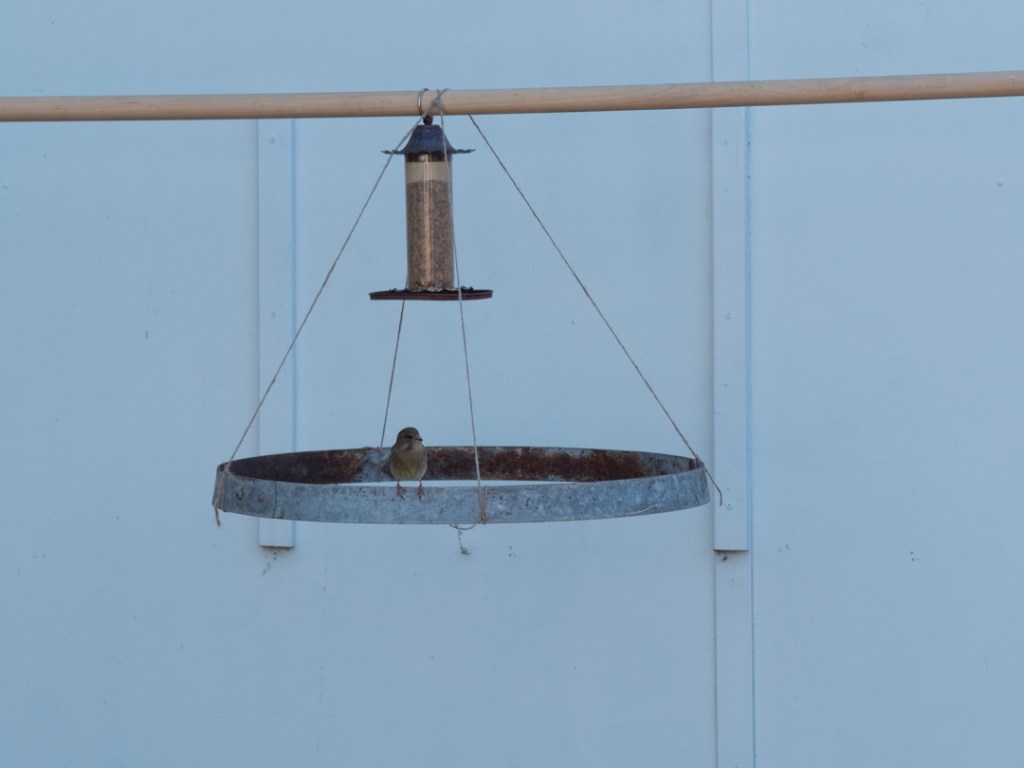

So on the afternoon of day three I built a stand for the feeder that also enabled the ring to be positioned without the need for strings. The rig also meant that I could set the height of the tripod and the ring so that I did not have issues with perspective.

Day 4 Nikon D600 f5.6 1/320s ISO100 200mm

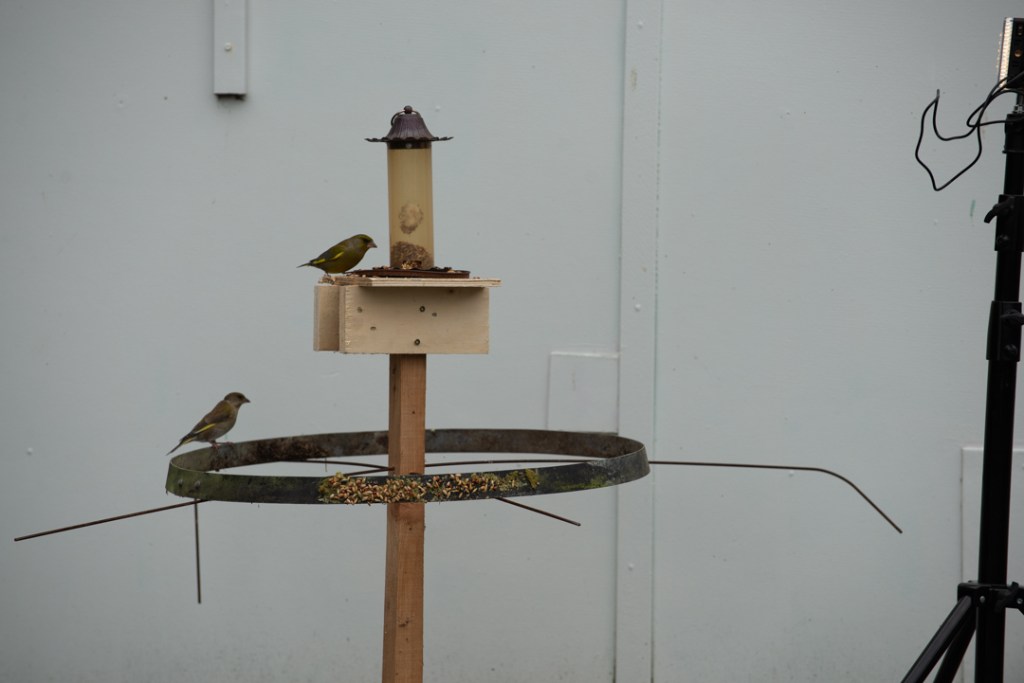

On Day four, the new set up was put into action. I also realised that I did not need to hide myself. Rather if I stayed still the birds would ignore me. So I positioned myself halfway across the driveway with the camera set on a tripod that was triggered remotely. While the shutter did make a noise the birds got used to it.

In order to try to encourage birds onto the ring I used peanut butter and glued seed to it. This was not overly successful.

After about 30 minutes or taking photos I thought that I had some definite ones that I could use. once they were loaded in light room a classified them based on where I thought they would fit in the image. That lead me to the conclusion that I still needed some images specifically birds in flight.

Day 5 Nikon D600 f8 1/800s ISO100 190mm

So on the morning of day five I was back in the seat with the same camera set up but now focused on only shooting flying birds. I had pushed the shutter speeder to 1/800 of a second. I also positioned LED light just out of shot to brighten up the wall slightly. Again this was to make cutting out the birds as easy as possible.

That night I did a very quick composite in Photoshop to see what multiple birds looked like. I was pleased with the result and figure that we were now in a position to move onto the model shoot.

The one thing that I was not sure of was how I was going to incorporate the wings that I wanted my main character have. I knew that I could not use any of the images I had shot as those birds were simply too small for it to be realistic. I had contemplated going in Te Papa Museum and photographing one of the stuffed birds.

That proved to be not necessary. When we returned from a Saturday morning walk I discovered that a young thrush had flown into our bedroom windows and broken its neck in the process. Before I disposed of the body I positioned it on a black piece of card and insured that the light direction matched how I had photographed the birds.

In part two we will cover the shoot with Rachel.

Halloween 2021 – Part 5 (The Witches Death)

This is the fifth and final instalment in my 2021 Halloween Themed editorial. The story continues:

But just before the blade can hit Red comes out of the trance. The Witch had forgotten that the spell only lasted so long. She fights with the witch and stops the knife.

Red stands and picks up a sword lying nearby.

Before the witch can react she swings it removing the witches head from her shoulders. Triumphantly Red picks up the witches head. As with most fairytales good has triumphed over evil. But in our modern fairytale the damsel in distress does not need a prince to save her.

The lighting for this part of the shoot was a two light set up. The main light was positioned camera right at a 90° angle to the subject and provided the main illumination. At the rear of the room I had a 7 foot umbrella with diffusion set at a low power to simply fill in the shadows

These image were shot at f8 1/125s ISO200 to ensure that I had sufficient depth of field. The main difference from the previous setup was that the camera was now placed on a tripod to make the composite easier.

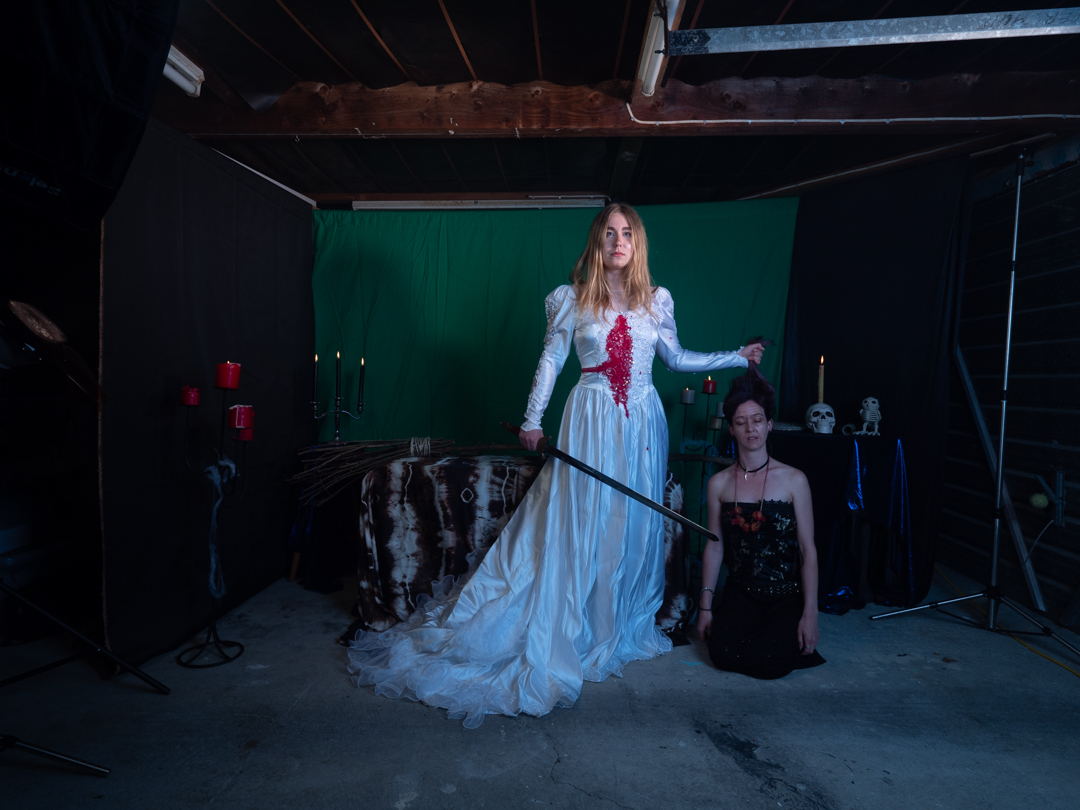

We shot two images were Lexy held the same pose but where Sian changed positions. For the body part I covered Sian head to make it easier in post.

In Photoshop it was a matter of putting both images in a document and masking the Sian’s body from the top image, and then creating the blood and open wound.

Then the image received the same treatment as the rest in the series. Overall it was darken and the rock texture was added to the rear. The image was then run into Nik Color Efex Pro to create the high texture image. Finally the moonlit LUT was added.

I was really pleased how the overall series went and everyone seemed to enjoy the series when I released them each day leading up to Halloween.

Halloween 2021 – Part 4 (The sacrifice)

This is the fourth instalment in my 2021 Halloween Themed editorial.. The story continues:

The Witch takes Red back to her lair and puts her in a wedding dress so that she can be a bride sacrifice to Satan the Witches Master.

The witch pour blood over Red and it about to make deep cut.

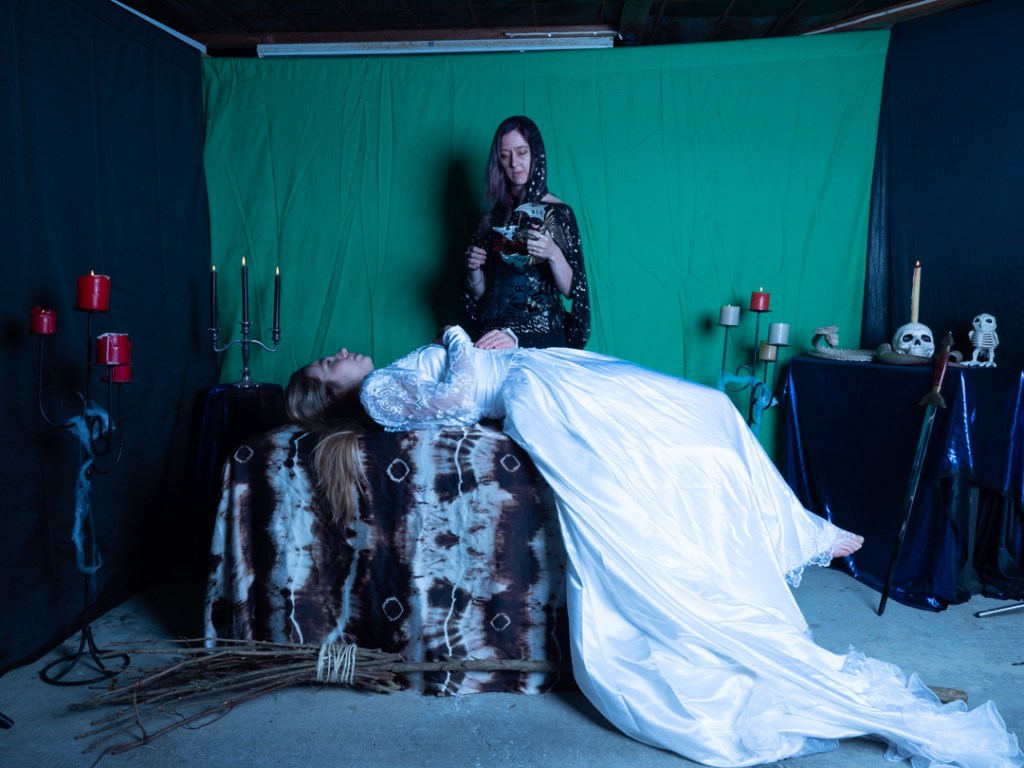

For this part of the shoot I built a small seat inside the garage in positioned various prompts around the scene. I chose a green background because I knew that I was going to replace it and I hoped that using green would make it easier.

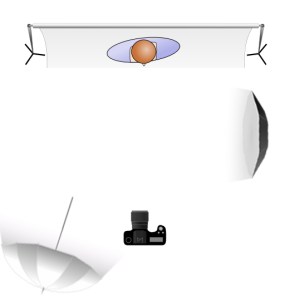

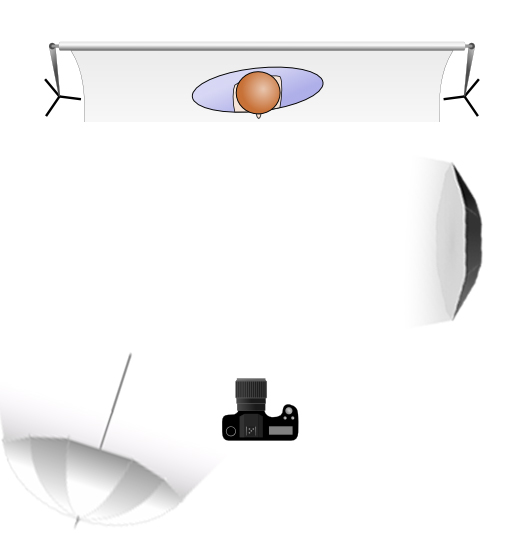

The lighting for this part of the shoot was a two light set up. The main light was positioned camera right at a 90° angle to the subject and provided the main illumination. At the rear of the room I had a 7 foot umbrella with diffusion set at a low power to simply fill in the shadows The image above shows what the shots look like straight out of camera.

These image were shot at f8 1/125s ISO200 to ensure that I had sufficient depth of field.

In Photoshop the image overall was darken and I added a rock texture to the rear. The image was then run into Nik Color Efex Pro to create the high texture image. Finally the moonlit LUT was added.

In the next instalment we wrap up the story.

Halloween 2021 – Part 3 (Red meets the Witch)

This is the third instalment in my 2021 Halloween Themed editorial.. The story continues:

“Red wanders into the forest. Hearing a strange sound she ventures towards it and sees a green glowing light and a strange lady hovering over a glowing cauldron.”

“The witch looks up and sees the candle awakening red to come closer. But when she is in range the witch casts the spell over read and she loses full control of yourself.”

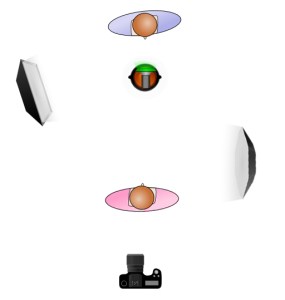

The challenge with lighting this image was that I only wanted to bring the two characters out from the background but I did not want a lot of spill as that would ruin the impact. Therefore using a single large light source would have not achieved my look.

The lighting on the witch was the same as in the previous post and used a speed light in a small square soft box. I added a second Godox speed light in a 65 cm round softbox positioned camera right and just in front of Red.

The settings were slightly changed to f4.5 1/60s ISO100.

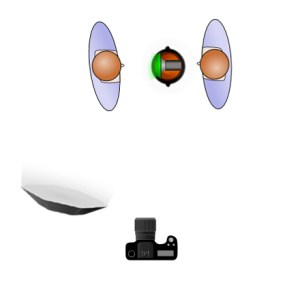

For the shot where the Witch puts the spell on Red, I changed positions and moved the Godox speed light in a 65 cm round softbox to be positioned camera left and just in front so that it would light up both of the subjects.

While the softbox was coming into the shot, I knew it would be an easy fix to remove it in post. Plus with it being so close to the subjects I knew that the fall off of light would be quite dramatic.

In post I cropped it down , darken down the background and then added a glow emanating from the cauldron using a mist brush that I had downloaded. I also applied a Moonlight Colour Look Up (LUT) which is one of the LUT’s that comes standard in Photoshop.

In the next post we move back inside for the sacrifice.

Halloween 2021 – Part 2 (The Witch)

This is the second instalment in my 2021 Halloween Themed editorial.

The story continues:

“Deep in the forest the witch begins rituals for All Hallows Eve brewing up a strong potion and hoping that a suitable victim for her planned sacrifice will come along.”

In my original planning for the shoot I wanted to have three witches reminiscent of the scene in Shakespeare’s Macbeth. Unfortunately I was not able to achieve that and Sian was the only one who was available. We had shot together before so I knew that she could bring the character to life. I constructed a mini see it in the back of our section and made her witches broom.

Please note that most of images shown on this page are outtakes that were not used so they have not been processed. with shoots like this you do end up with a lot of images that you will not use especially those when you were trying to achieve particular lighting look.

I used a single Godox speedlight is a small square soft box positioned camera right to illuminate Sian. A lume cube was placed inside the cauldron with a green gel to cast light from below. Halloween is one of the few occasions where you can get away with lighting a subject from below.

The settings on the camera did not change from the first shoot namely 1/100s f2.8 ISO100.

As the series was in intended for Instagram in post I cropped it down to a portrait orientation, darken down the background and then added a glow emanating from the cauldron using a mist brush that I had downloaded. I also applied a Moonlight Colour Look Up (LUT) which is one of the LUT’s that comes standard in Photoshop.

In the next episode Red meets the Witch.

Halloween 2021 – Part 1 (Red)

Each year in October I challenge myself to shoot something with a Halloween theme. Back in 2021 I took this one stage further and decided to shoot another story similar to what I had done earlier with the Dressmaker series. This is the story of Red and the Witch a modern interpretation of fairytales. It will be split over five posts as each used differing lighting techniques.

The story begins:

“Red was not the brightest girl in town and she had to habit of ignoring any type of warning that she was given. The main one was to not venture into the dark forest after dark and especially not around all hallows eve. Of course that is exactly what she did.

I placed the casting cool on Facebook and Lexy was one of the ones who responded to it. In looking through the pictures it was obvious that she would play read.

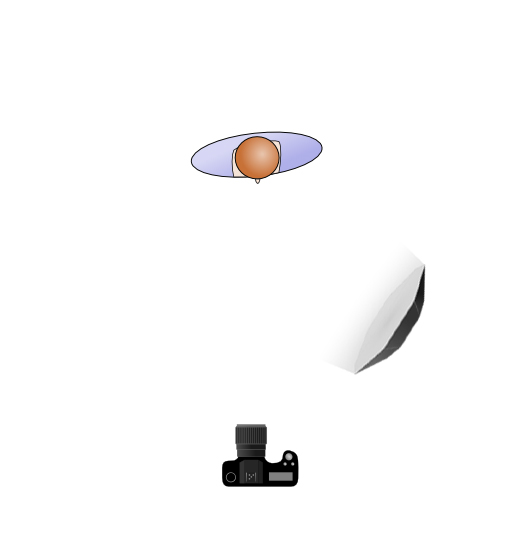

We set up in the garage and she was lit using a 65cm round soft box with placed camera right. This insured that the light fell only on the model and did not spill into the background. The shorts were taken at f2.8 ISO 100 1/ 100s. The candlelight is real and was not advanced. They glass container that it was in dead cause a problem with reflection of the lights. Unfortunately there was nothing I could do about this other than toning it down.

The image was proceed through Nik software to increase the texture and boost saturation. You can see the original version below.

In the next instalment we meet the witch.

Fun at the Jump Park

1/1600s f11 ISO400

In July 2021 I travelled to Nelson to attend the NZ IPP annual conference I had booked in for a workshop on the afternoon before the conference started but that ended up being cancelled when Covid closed our borders and the Australian speaker could not attend.

That left me free to attend a jump park shoot south of Nelson organised by Andrew Reid from Panasonic.

Unfortunately heavy rain in the days leading to the shoot meant that we could not shoot we had originally been planned because it was too dangerous for the riders and also would result in damage to the course fortunately Nelson City Council had developed a hard track as well so we use that.

We positioned ourselves around the track trying to avoid getting each other in shots and proceeded to snap away. It was a little difficult achieving good separation of the riders background elements such as trees. most of the images were shot at 1/640 second F4 at ISO 400. the cameras subject tracking most reasonable although it held if you positioned yourself with a ride coming straight towards you

Once everyone was bored with the action shots we tried something different shooting the riders jumping directly into the sun. This meant increasing the shutter speed 1/1600 to expose for the sky and f11to create the star effect of the sun.

It was a fun afternoon with a subject completely different to my usual models.

Dance workshop – Showing motion

4s f10 ISO200

The third lighting set up was designed to create images that showed the movement of the dancers. The technique is both simple to understand and difficult to execute perfectly. Using long exposures, it uses a combination of flash (to freeze action) and a continuous light to allow the shutter to record the movement. Depending on whether you set the flash to fire at the start or the end of the shutter time determines where the image will be sharp.

We used the stage area as it gave us plenty of space for the dances to move we could utilise the dark curtains and it was well away from the other lighting stations so that the images would not be affected by those stripes.

This type of photography is quite tricky for the dancer as they need to a key point on the stage at exactly the right time that the flash fires. Therefore it takes a lot of shots and a good deal of luck to nail the perfect image.

As can be seen below a lot of the early images were not up to par.

2.5s f9 ISO200

With the second dancer I tried a slightly different approach and then relying on the flash firing automatically, I brought in my speed light light and manually fired several times while the shutter was open. this has the result of freezing the action at several points in the capture.

4s f10 ISO200

This type of photography is both fun and frustrating. You never know exactly what you were going to end up with. each image can be a surprise or let down. But it is in that not knowing that the real enjoyment comes.

Dance workshop – Creating mood

1/125s f7.1 ISO200

The second lighting set up was designed to create low-key moody portraits of the dancers. It used a single light in a 1.5m octobox that was covered with a grid to ensure that there was control of where the light went.

The background was a dark muslin fabric. Furthermore to enhance the shadows a black reflector was placed opposite the main light. This ensured that they was no bounce light coming on that side.

1/125s f9 ISO200

For my first shot I had the model sit on the floor which further feathered the light hitting them. For the second shot I had another dancer join in order to ensure focus I increased the aperture up to f9.

I was really pleased how these images came out. The key to the shot was really the use of the grid as this really enabled the light to be focused

Dance workshop – Freezing Action

1/125s f5.6 ISO200

As I mentioned in a previous post, in July 2021 I travelled down to Invercargill to be the host and assist at a Photographic Society of New Zealand (PSNZ) dance workshop. The workshop was being run by Auckland fashion photographer AaronKey and was held in a large hall that had very limited natural light.

We set up three very different lighting setups and the participants rotated through them. As each station was designed to produce a different look I am going to cover them in three separate posts.

I was expecting to only be helping with the session but we had a participant pull out so I ended up taking part as well so that the rotations worked properly.

Aaron works for sunny and through its connections borrowed a whole lot of lighting that he bought to the venue. It took us nearly 2 hours to set up the three lighting positions.

The first set was on a plane white seamless background and employed a single light shooting into a 7 foot umbrella. This set up was designed the freeze motion with a high key look.

The first dancer tended to move across the stage or rotate in one spot so I was shooting her at f5.6. The second dancer was leaping so I changed to aperture to f8 to give me a better depth of field.

1/100s f8 ISO200

Under natural light shutter speeds of 1/100s or 1/125s would not be fast enough to freeze action. However when you are using studio lights this is not an issue as it is the duration of the flash that freezes the subject. Shutter speed only has an impact on how much of the ambient light comes into the image.
